AND爱安德秤重传感器
详细信息
A&D 秤重传感器,用于检测力(质量、转矩)的传感器。在受到力以后,会将其转换为电信号。也称为负载转换器。可提供单点式、柱式、S型、密闭结构型、梁式、防爆型、特殊型等多种类型的产品,此外还可提供计量台、称料箱、指示计等产品以及各种配件
单点式秤重传感器:
Capacity | Model No. | CAD File |

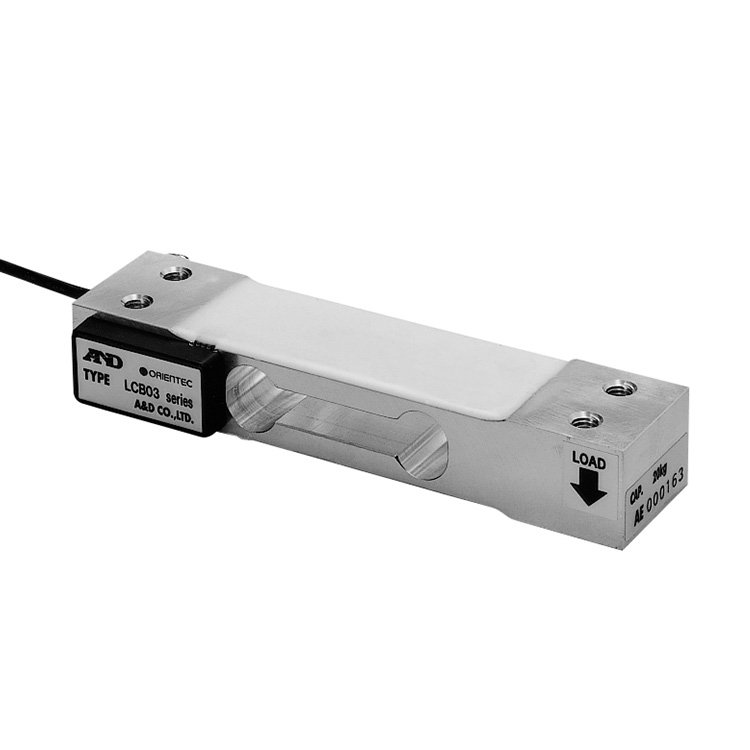

LCB03M Series | ||
3 kgf | LCB03K003M | Download |
6 kgf | LCB03K006M | |
10 kgf | LCB03K010M | |
15 kgf | LCB03K015M | |
20 kgf | LCB03K020M | |
LCB03L Series | ||
25 kgf | LCB03K025L | Download |
30 kgf | LCB03K030L | |
35 kgf | LCB03K035L |
Capacity | Model No. | CAD File |
LCB04M Series | ||
60 kgf | LCB04K060M | Download |
100 kgf | LCB04K100M | |
LCB04L Series | ||
150 kgf | LCB04K150L | Download |
250 kgf | LCB04K250L |
Capacity | Model No. | CAD File |
6kg (58.84N) | LCB22K006 | Download |
10kg (98.07N) | LCB22K010 | |
15kg (147.1N) | LCB22K015 | |
20kg (196.1N) | LCB22K020 | |
30kg (294.2N) | LCB22K030 |
Capacity | Model No. |
120 gf | LC4001-G120 |
Capacity | Model No. | CAD file |
600 gf | LC4101-G600 | Download |
1.5 kgf | LC4101-K1.5 | |
3 kgf | LC4101-K003 | |
6 kgf | LC4101-K006 | |
15 kgf | LC4101-K015 |
Capacity | Model No. | CAD file |
10 kgf | LC4102-K010 | Download |
15 kgf | LC4102-K015 | |
30 kgf | LC4102-K030 | |
60 kgf | LC4102-K060 | |
150 kgf | LC4102-K150 |
Capacity | Model No. | CAD file |
60 kgf | LC4103-K060 | Download |
100 kgf | LC4103-K100 | |
150 kgf | LC4103-K150 |
Capacity | Model No. |
300 kgf | LC4204-K300 |
600 kgf | LC4204-K600 |
防腐型秤重传感器:
Capacity | Model No. |
500 kgf (5 kN) | LCS15K500 |
1 tf (10 kN) | LCS15T001 |
2 tf (20 kN) | LCS15T002 |
Capacity | Model No. | CAD File |
30 kgf | LCB05K030 | Download |
60 kgf | LCB05K060 | |
150 kgf | LCB05K150 | Download |
Capacity | Model No. | CAD File |
500 kgf | LCC07K500 | Download |
1 tf | LCC07T001 | |
2 tf | LCC07T002 | |
3 tf | LCC07T003 | |
5 tf | LCC07T005 |
Capacity | Model No. |
10 tf | LCC11T010/LCC11T010N |
20 tf | LCC11T020/LCC11T020N |
30 tf | LCC11T030/LCC11T030N |
Capacity | Model No. | CAD File |
1 kN(102kgf) | LCM13K100 | Download |
2 kN (204 kgf) | LCM13K200 | |
3 kN (306 kgf) | LCM13K300 | |
5 kN (500 kgf) | LCM13K500 | Download |
10 kN (1 tf) | LCM13T001 | |
20 kN (2 tf) | LCM13T002 | |
30 kN (3 tf) | LCM13T003 | |
50 kN (5 tf) | LCM13T005 |
Capacity | Model No. |
10 kgf | LC4221-K010 |
20 kgf | LC4221-K020 |
50 kgf | LC4221-K050 |
100 kgf | LC4221-K100 |
200 kgf | LC4221-K200 |
300 kgf | LC4221-K300 |
多用途秤重传感器:
Capacity | Model No. |

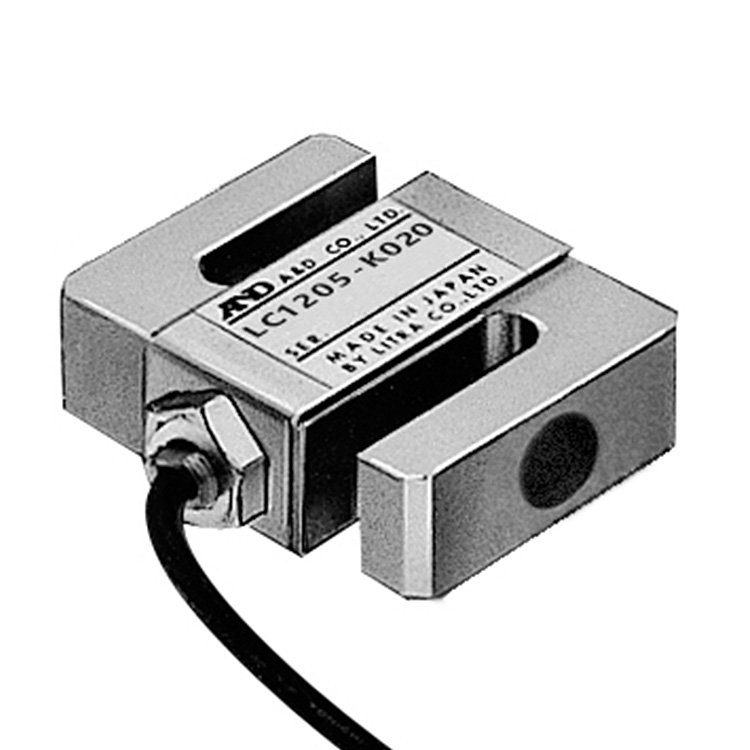

20 kgf | LC1205-K020 |
50 kgf | LC1205-K050 |
100 kgf | LC1205-K100 |
200 kgf | LC1205-K200 |
500 kgf | LC1205-K500 |
1 tf | LC1205-T001A |
2 tf | LC1205-T002 |
5 tf | LC1205-T005 |
Capacity | Model No. |
100 kgf | LC1216-K100 |
200 kgf | LC1216-K200 |
500 kgf | LC1216-K500 |
1 tf | LC1216-T001A |
2 tf | LC1216-T002A |
5 tf | LC1216-T005 |
Capacity | Model No. |

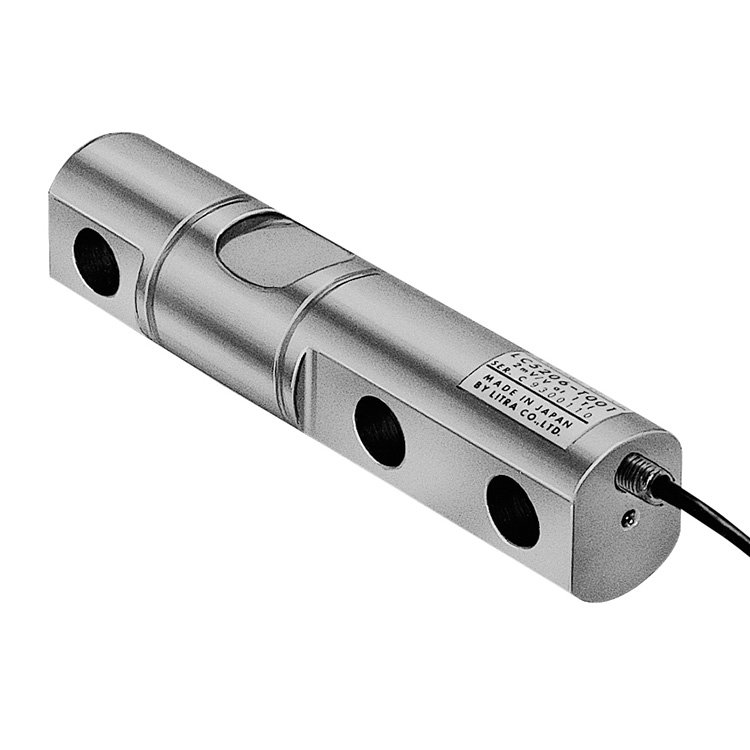

300 kgf | LC5206-K300 |
500 kgf | LC5206-K500 |
1 tf | LC5206-T001 |
2 tf | LC5206-T002 |
Capacity | Model No. |
20 tf | LC5207-T020 |
25 tf | LC5207-T025 |
Capacity | Model No. |
500 kgf | LC5223-K500 |
1 tf | LC5223-T001 |
1.5 tf | LC5223-T1.5 |
2 tf | LC5223-T002 |
3 tf | LC5223-T003 |
5 tf | LC5223-T005 |
